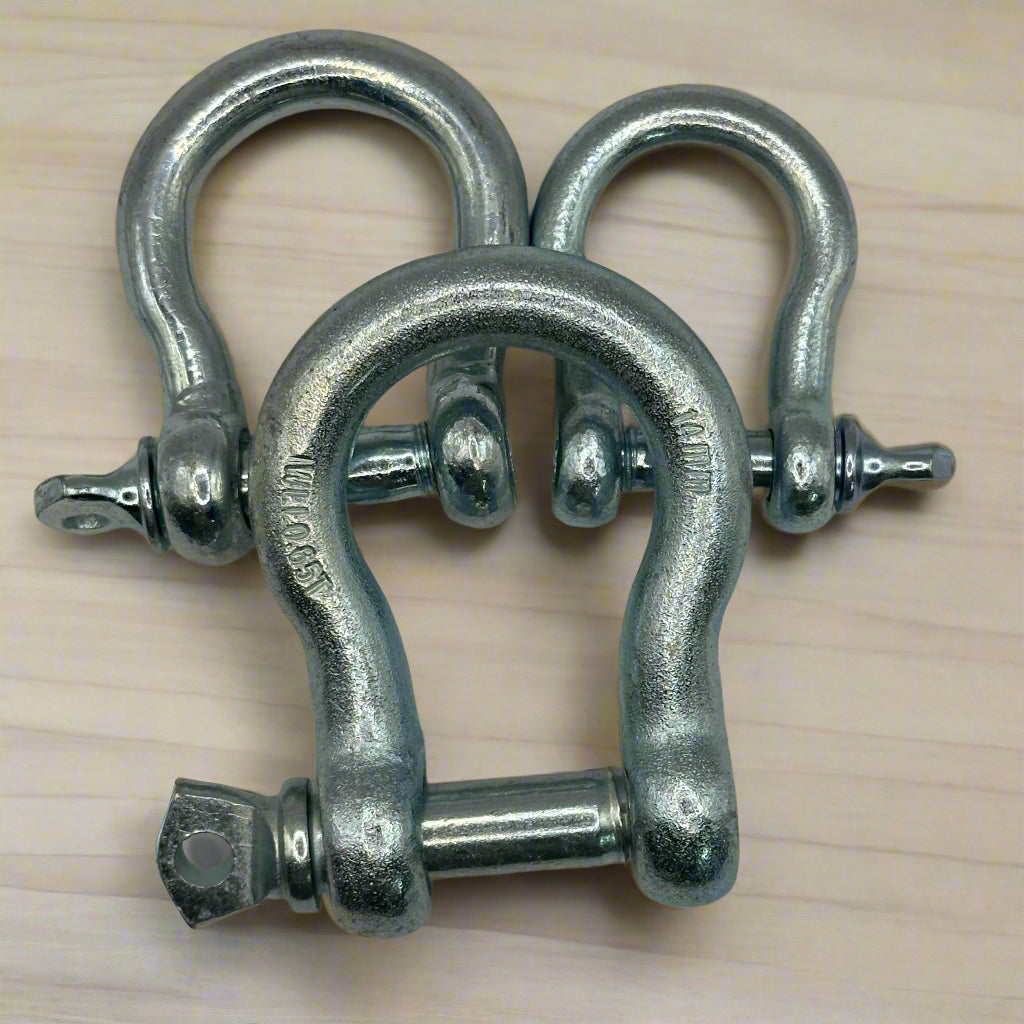

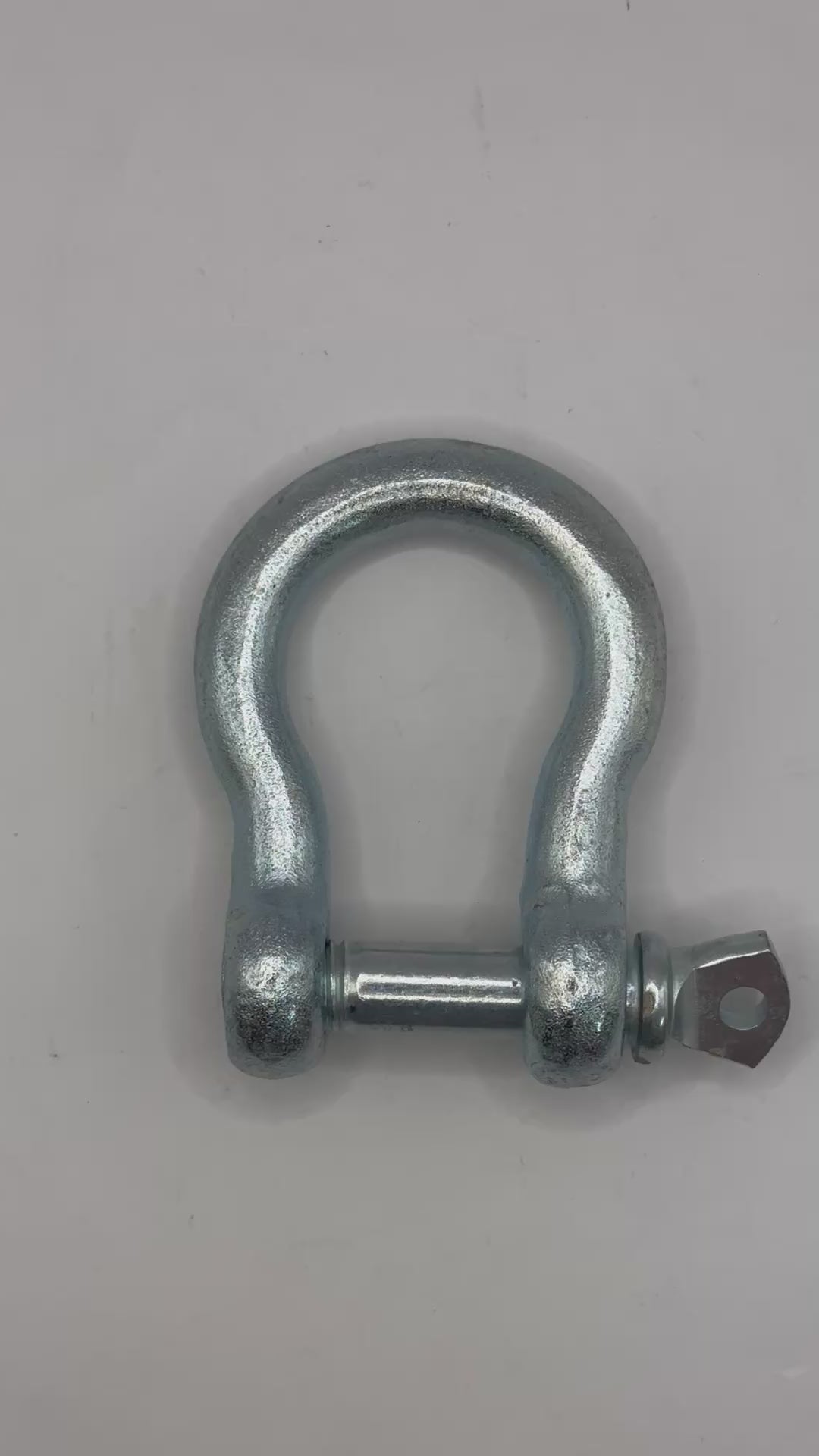

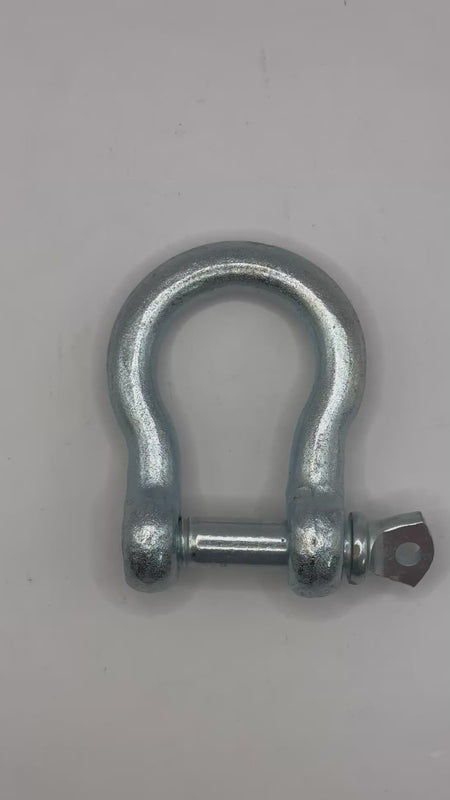

Hot Galvanised Steel Bow Shackles

Bow Shackles are used as a joining point where several multi-directional connections are required as opposed to D-Shackles which are used on single leg systems.

5mm Hot Galvanised Steel Bow Shackles

Product code	67305GF
Body and Pin Size (mm)	5mm
Inside Length x Width (mm)	19 x 15
Pack Size	10 per bag

6mm Hot Galvanised Steel Bow Shackles

Product code	67306GF
Body and Pin Size (mm)	6mm
Inside Length x Width (mm)	25 x 18
Pack Size	10 per bag

8mm Hot Galvanised Steel Bow Shackles

Product code	67308GF
Body and Pin Size (mm)	8mm
Inside Length x Width (mm)	32 x 22
Pack Size	10 per bag

10mm Hot Galvanised Steel Bow Shackles

Product code	67310GF
Body and Pin Size (mm)	10mm
Inside Length x Width (mm)	42 x 28
Pack Size	10 per bag

12mm Hot Galvanised Steel Bow Shackles

Product code	67312GF
Body and Pin Size (mm)	12mm
Inside Length x Width (mm)	50 x 35
Pack Size	10 per bag

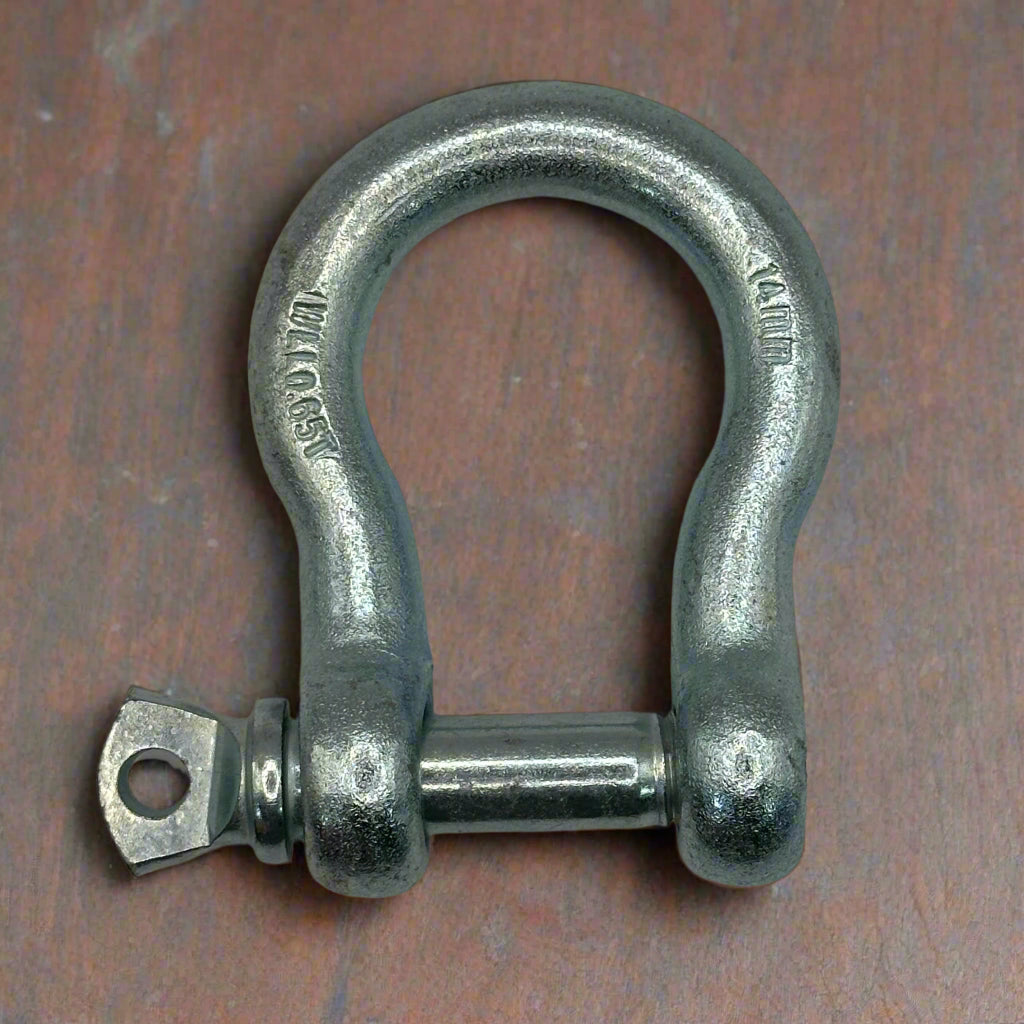

14mm Hot Galvanised Steel Bow Shackles

Product code	67314GF
Body and Pin Size (mm)	14mm
Inside Length x Width (mm)	62 x 44
Pack Size	10 per bag

20mm Hot Galvanised Steel Bow Shackles

Product code	67320GC-1
Body and Pin Size (mm)	20mm
Inside Length x Width (mm)	66 x 66
Pack Size	Single

22mm Hot Galvanised Steel Bow Shackles

Product code	67322GC-1
Body and Pin Size (mm)	22mm
Inside Length x Width (mm)	76 x 88
Pack Size	Single

24mm Hot Galvanised Steel Bow Shackles

Product code	67324GC-1
Body and Pin Size (mm)	25mm
Inside Length x Width (mm)	84 x 96
Pack Size	Single

What are bow shackles best used for compared to D-shackles?

Bow shackles are designed for multi-directional connections, making them ideal when you need to join several points or loads coming from different angles. D-shackles are typically used for single leg systems where the force is more aligned, so choose bow shackles for more complex rigging setups.

How do I know which size bow shackle to pick?

We offer sizes from 5mm to 24mm in body and pin diameter, each with specific inside dimensions like length and width. Consider the space available and the load requirements for your project—for example, a 5mm shackle has an inside length of 19mm and width of 15mm, while larger sizes provide more room for connections.

What does 'hot galvanised steel' mean for these shackles?

Hot galvanised steel means the shackles have a protective zinc coating applied through a hot-dip process, which enhances durability and helps resist rust and corrosion. This makes them suitable for use in outdoor or damp environments where exposure to elements is a concern.

How many shackles come in a pack when I order?

For sizes from 5mm to 14mm, each pack contains 10 shackles, which is convenient for multiple uses or projects. The larger sizes, 20mm and above, are sold individually, so you can order exactly the quantity you need for heavier-duty applications.

Can these bow shackles be used with chains or other rigging equipment?

Yes, these are specifically designed as chain accessories and work well with welded chains and various rigging systems. Their bow shape allows for multi-directional connections, making them versatile for joining chains in setups like lifting, towing, or securing loads.
