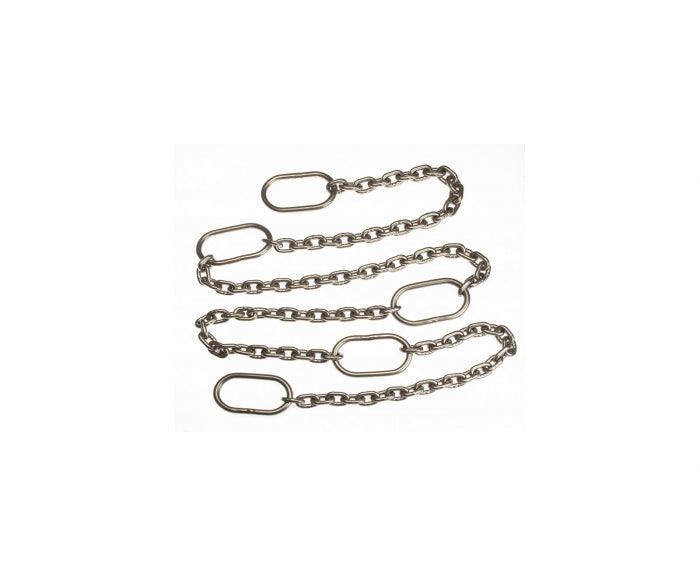

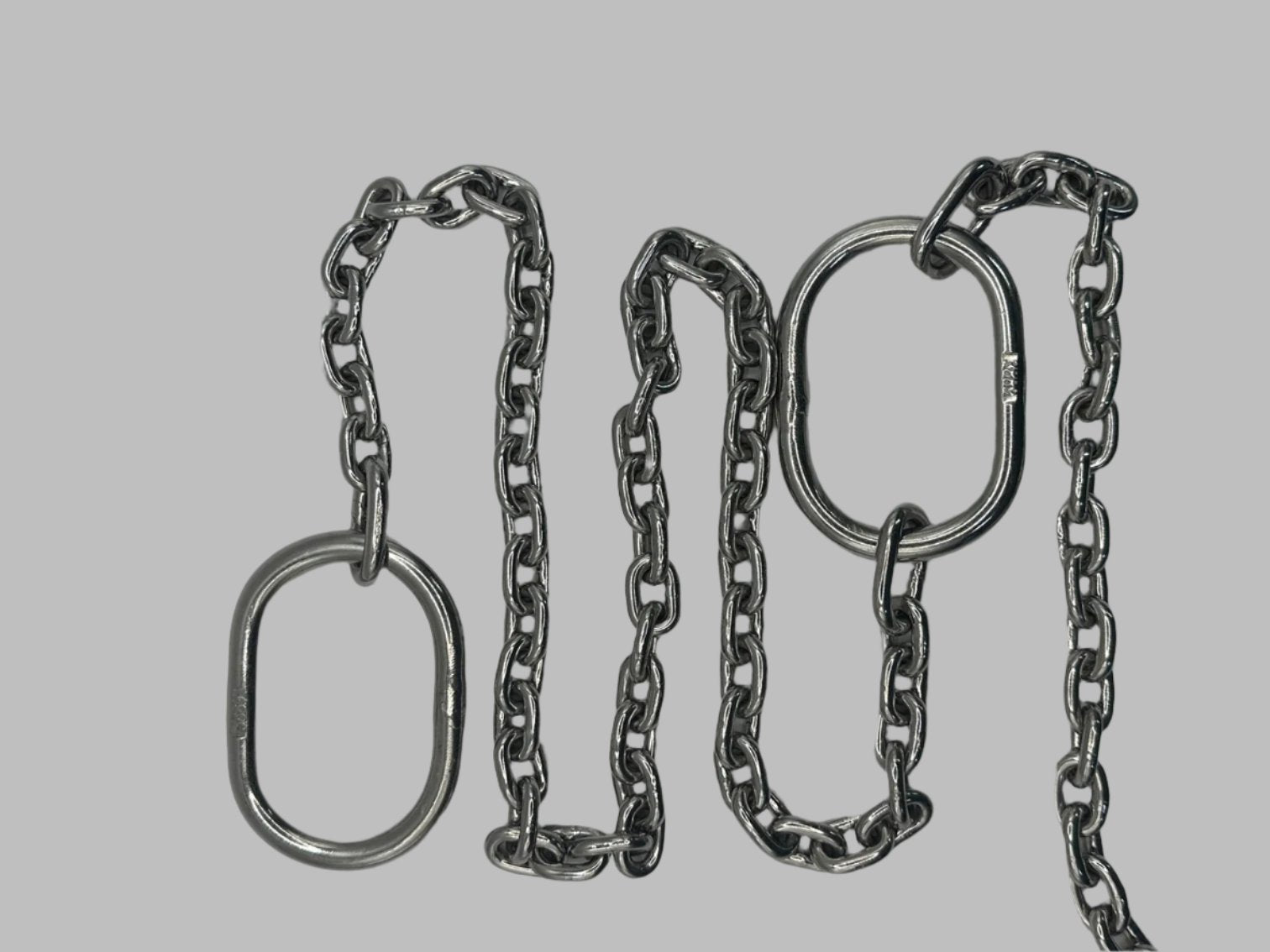

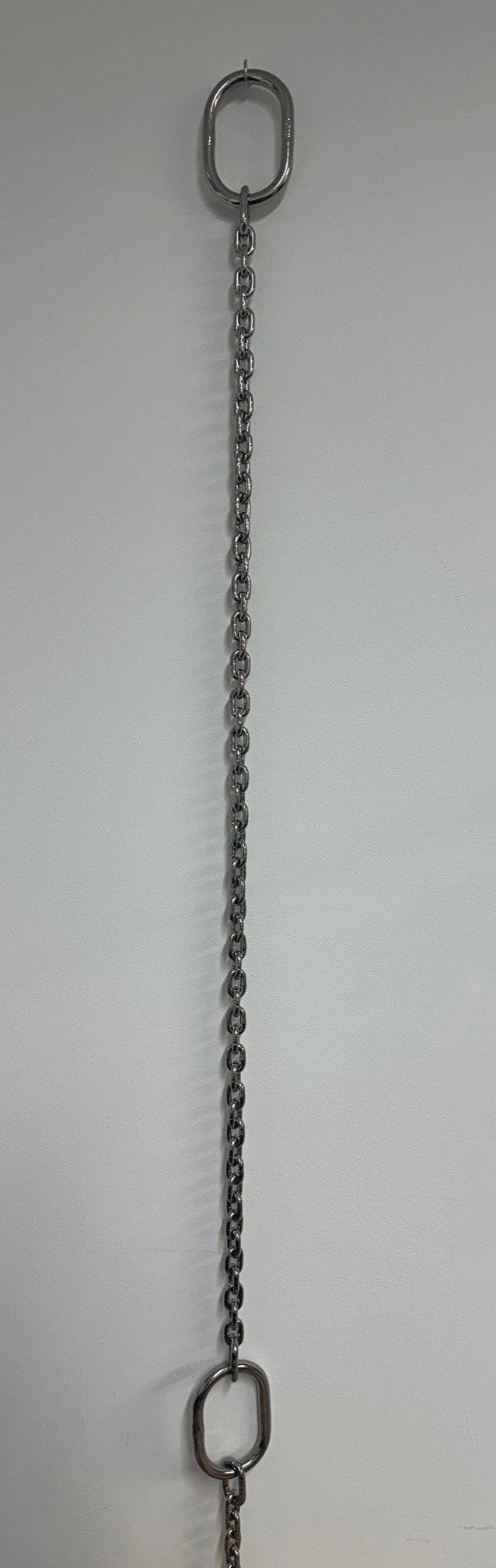

1000kg Stainless Steel Pump Lifting Chain
1000kg Pump Lifting Chains - AISI 316L Stainless Steel
Fitted with index lifting at each end and at one metre centres.

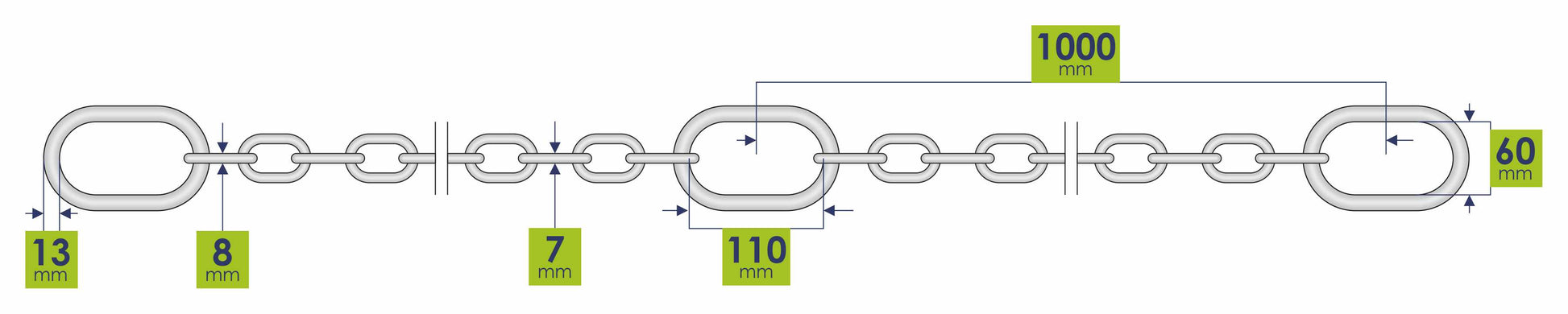

Product Size
Master Link 13mm Diameter x 115mm Internal Length x 60mm Internal Width
Intermediate Link 8mm Diameter x 35mm Internal Length x 16mm Internal Width
Chain Link 7mm Diameter x 21mm Internal Length x 9mm Internal Width
Production and Quality Information
Manufactured from corrosion resistant Stainless Steel to AISI316L
Full traceability for all components used
Every Master Link embossed with batch number
Assemblies are Proof Load Tested to twice the WLL, Factor of safety 4:1
Full certification available for every assembly
Finish - Polished
How much weight can this pump lifting chain handle?
This chain has a Working Load Limit (WLL) of 1000kg, so it's rated to safely lift up to that weight. It's proof load tested to twice the WLL (2000kg) with a factor of safety of 4:1, ensuring dependable performance under stress. Always follow the WLL guidelines for safe lifting operations.
Why is this chain made from stainless steel?
It's constructed from AISI 316L stainless steel, which is highly corrosion-resistant, making it perfect for use in wet or harsh environments like pump lifting. This material choice enhances durability and minimizes rust, so it lasts longer with less upkeep.
What are the dimensions of the chain links?
The master link is 13mm in diameter with an internal length of 115mm and width of 60mm. Intermediate links measure 8mm diameter (35mm length, 16mm width), and chain links are 7mm diameter (21mm length, 9mm width). These specific sizes are designed for optimal strength and compatibility with standard lifting gear.
Is this chain certified for safety?
Yes, every assembly is proof load tested and full certification is available for each one. Each master link is embossed with a batch number for traceability, and the chain is manufactured to high standards with a polished finish, giving you peace of mind on quality.
Can this chain be used for applications other than lifting pumps?
While it's specifically designed as a pump lifting chain, the corrosion-resistant AISI 316L stainless steel makes it suitable for other lifting tasks in marine, industrial, or outdoor settings where moisture is a concern. Always verify that it meets the requirements of your specific application before use.
