Short Link Welded Chain - Hot Galvanised DIN766

In stock
SKU: 47305GC
English Chain...the chain experts. Selling chain since 1923
Great reputation & great service. FREE Delivery on orders over £60
Regular price £6.24 inc. VAT
Options

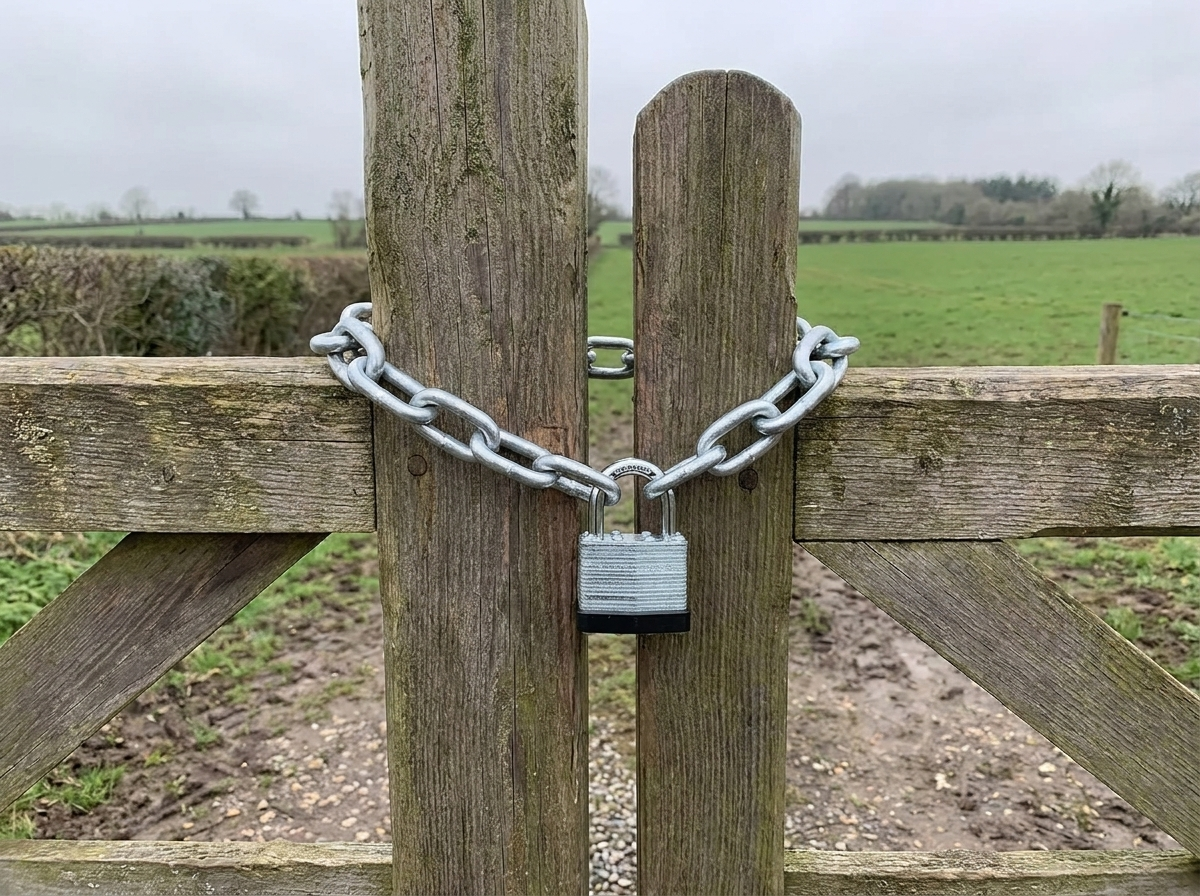

A general purpose, commercial steel chain used in a wide range of applications where overhead lifting, load binding or towing is NOT required.  Ideal as a mooring or anchoring chain. Particularly popular for use with children's playground equipment due to the narrow inside link measurements which reduce the risk of trapped fingers.

Specifications for all sizes are listed below.



Priced per metre



Product Information



5mm Short Link Chain – HG

Product Code                         47305GC

Wire Size                                5mm

Inside link length x width       18.5mm x 7mm

Weight per metre                   0.5kg

Maximum Working Load        250kg*



6mm Short Link Chain – HG

Product Code                          47306GC

Wire Size                                 6mm

Inside link length x width        18.5mm x 8mm

Weight per metre                    0.75kg

Maximum Working Load         350kg*



7mm Short Link Chain – HG

Product Code                          47307GC

Wire Size                                 7mm

Inside link length x width        22mm x 9mm

Weight per metre                    1.06kg

Maximum Working Load         600kg*



8mm Short Link Chain – HG

Product Code                          47308GC

Wire Size                                 8mm

Inside link length x width        24mm x 10mm

Weight per metre                    1.35kg

Maximum Working Load         630kg*



10mm Short Link Chain – HG

Product Code                          47310GC

Wire Size                                 10mm

Inside link length x width        28 x 14

Weight per metre                    2.30kg.

Maximum Working Load         1000kg*





* The maximum working load figure quoted is for guidance only. Our chains are commercial chains and should never be used with hoists for overhead lifting, nor for load binding or towing purposes.
